Voltage reducting Bridge rectifer with 2 Zener diodes (Diode Circuits)

by admin @, Sunday, May 26, 2013, 15:53 (2565 days ago)
edited by admin, Friday, August 23, 2013, 12:55

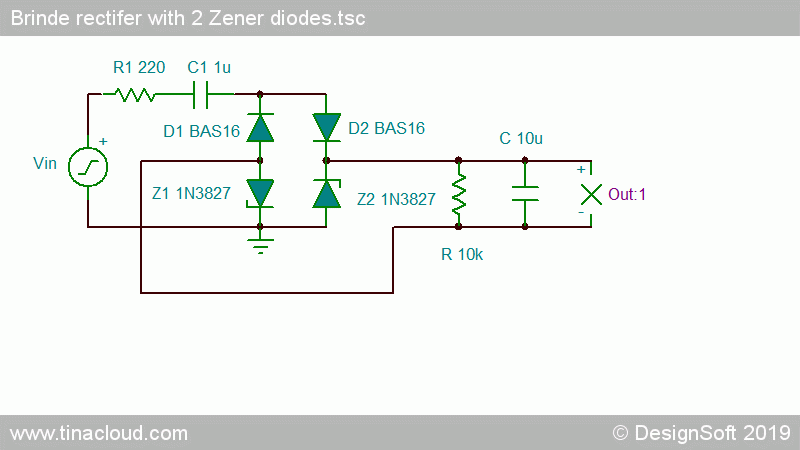

[image][Brinde rectifer with 2 Zener diodes.tsc] [image]

This is a voltage reducing version of the classic full-wave bridge rectifier circuit, converting the sinusoidal input waveform to a reduced positive pulsating DC output. It includes 2 Zener diodes in the lower part of the bridge to ensure the voltage requirement is met. The pulsation is smoothed by the smoothing capacitor C. The series capacitor C1 is used to reduce heat loss.

Click the link above to run and test for free in TINACloud.

Zener diode, bridge rectifier
